Save time and optimize your projects with features such as:

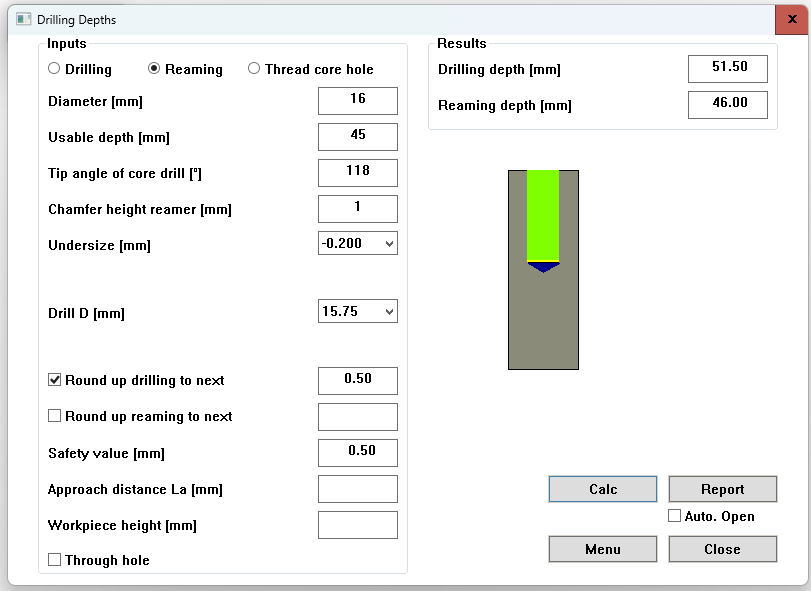

✔   Speedy depth calculations for drilling, reaming, and thread creation, especially
      for blind-hole machining.

✔   Dowel pin calculations for joining two workpieces with blind-hole drilling.

✔   Fast flange creation with coordinate output for bolt patterns and DXF export.

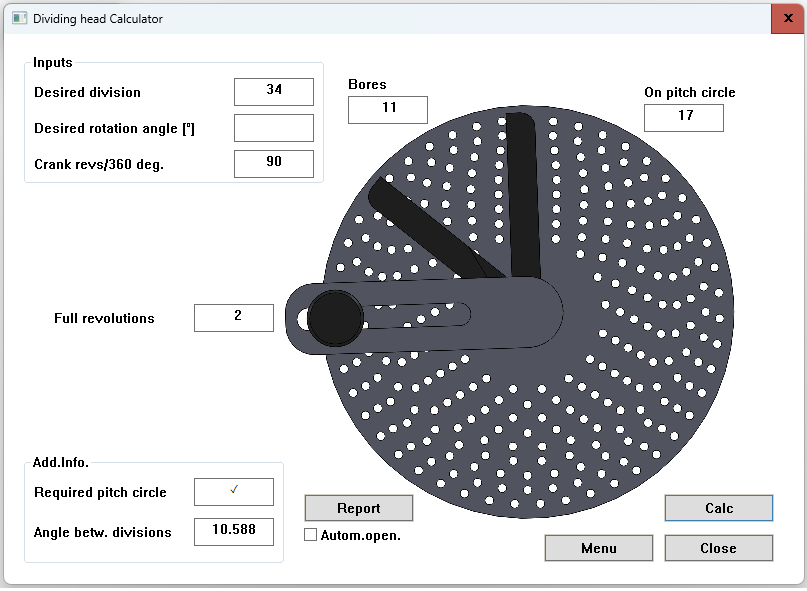

✔   Rotary table, indexing head and sine bar calculations for precise angular machining.

✔   Eccenter processing: Off-center turning in a three-jaw chuck.

SIMmachina Tools helps conserve resources and tools:

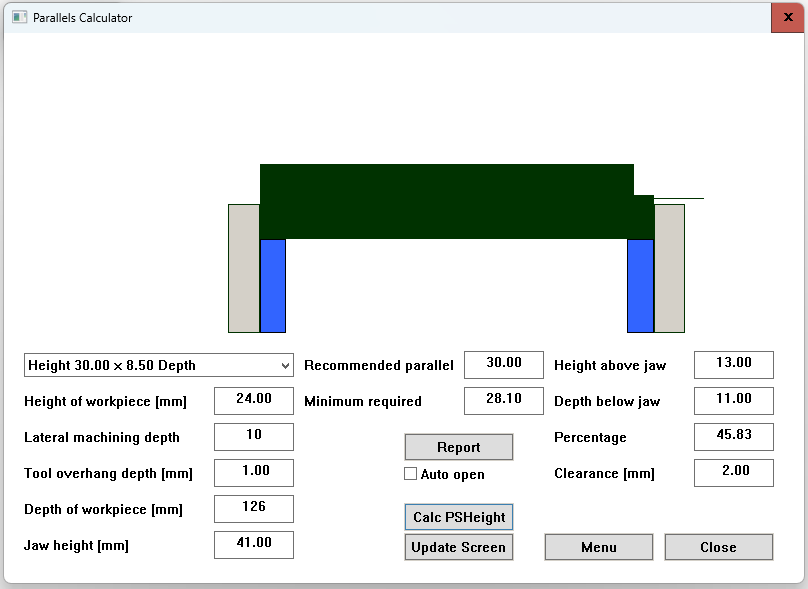

✔   Calculations for the optimal parallel piece height for secure clamping
      and performing all machining steps without “unpleasant surprises”,
      such as tool contact with vice jaws.

✔   Coolant calculation for both increasing and decreasing concentrations.

✔   Precise linear cutting on milling machines and lathes.

Special functions for older NC machines from the 1980s and 1990s:

✔   Tool database and automatic updates of tool offsets in the NC program
      before sending it to the machine.

✔   Tool database for up to 10 machines, each with 500 tools.

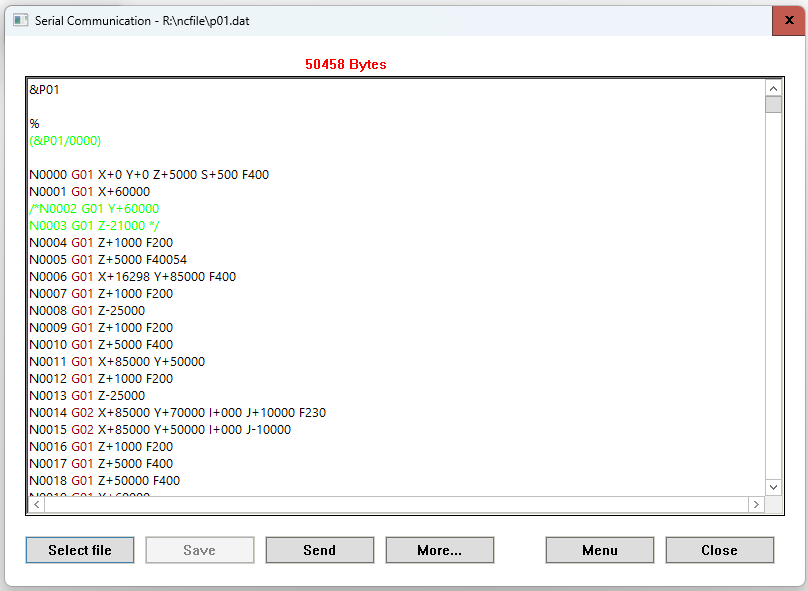

✔   Data transfer via serial RS232 Interface under Windows® 11, Windows® 10,
      and Windows® 7, supporting both 64-bit and 32-bit versions.

✔   Cutting data calculator optimized for stepped speed machines.

✔   NC editor with tool offset update functions, line numbering
      and color-coded text formatting.

Numerous helpers for daily tasks:

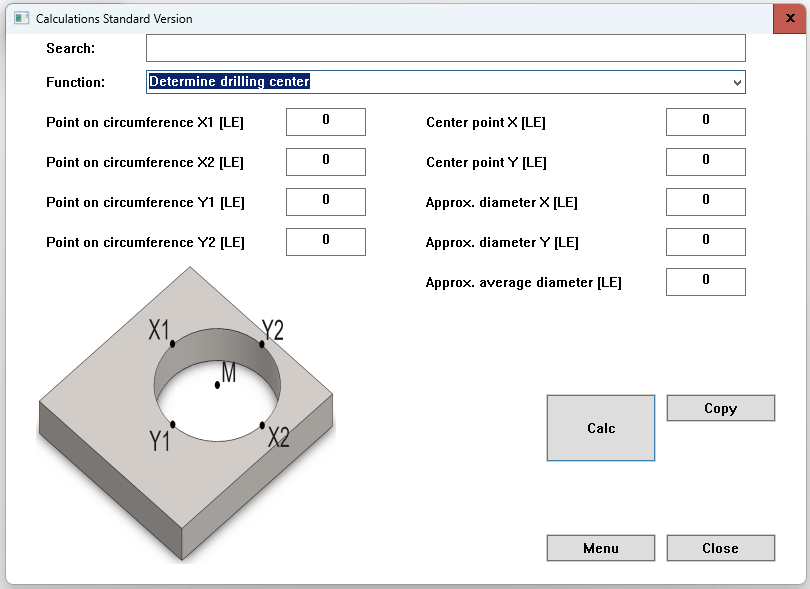

✔   General calculations such as pin dimensions, hole center points,
      torque offsets for torque wrenches, dwell times,
      length expansions for shrink fits, conversions, etc.

✔   Regular additions to the calculation library with option
      of user-specific customization.*

✔   Quick printing of tool info cards that can be attached to tool holders,
      including essential machining data.

✔   Report generation from each function window: Calculation results
      can be easily printed and taken to the machine.

Here you can find the features and pricing overview of SIMmachina Tools.
